Corrugated metal hose is made from several different materials, depending on application. When selecting the material, proper consideration must be given to corrosion resistance, service temperature and material strength.

Corrugated metal hoses are suitable for a wide range of applications in many industries including chemical, automotive and power generation sectors and ideal for the conveyance of liquids and gases under pressure and also capability to withstand high temperatures, impacts and corrosive substances and atmospheres.

The range of standard end connectors include screwed fittings (male and female), flanged fittings of any standard fix as well as swivel type, welding stubs, cam & groove coupling and etc. We also can supply hose assemblies with special end fittings as per customer's drawings and requirements.

Typical corrugated metal hose fittings:
1. Weld nipple ( Schedules 40 / 80 )
2. Pipe nipple ( Schedules 40 / 80 )
3. Female pipe coupling ( Classes 150# / 3000# )
4. Hex male nipple
5. Female union ( Classes 150# / 3000# )
6. Female JIC / BSP / DIN swivel fitting
7. Raised face, slip on flange ( Classes 150# / 300# )
8. Raised face, slip on flange with pipe spacer ( Classes 150# / 300# )
9. Type A-stub end with lap joint flange ( Stub schedule 10 / 40, flange classes 150# / 300# )
10. Type C-stub end with slip on or plate flange ( Stub schedule 10, flange classes 150# / 300# )
11. Elbow ( Schedules 40 / 80 )

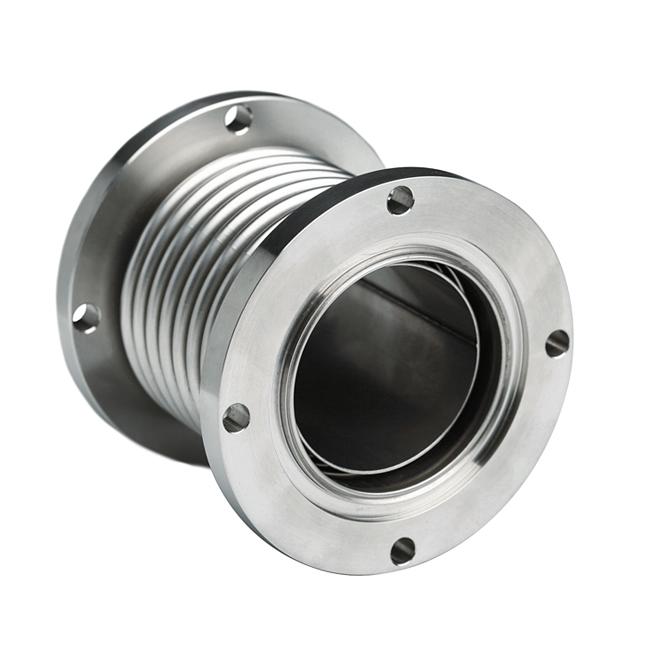

We can fabricate various helical, annular, bellows corrugated metal hose product, complete with end connectors of brass, carbon steel and stainless steel 304 / 316.

We strictly follow the S.T.A.M.P.E.D procedures to insure as best we can that we supply the correct hose for your application. In co-operation with our customers, by following it we endeavor to obtain the maximum information required, exceptional workmanship and high quality machines to provide a final quality products with small error rate.
